The RQR, RQB, and RQL series wire wound resistors from RMS Co., Ltd. are designed to provide stable electrical performance in applications requiring reliable power dissipation, excellent thermal stability, and long service life. Featuring ceramic-encased wire wound construction, these resistor series are engineered to withstand continuous electrical loading while maintaining stable resistance characteristics in demanding industrial environments.
Unlike general-purpose resistors, wire wound resistors are specifically designed for applications where high-power handling capability, resistance accuracy, and long-term reliability are essential. Their robust construction makes them suitable for power supplies, industrial automation, motor drives, braking systems, testing equipment, and energy-related applications.
How Wire Wound Resistors Work
Wire wound resistors are constructed by winding a precisely controlled resistance wire around a ceramic core before encapsulating the assembly inside a ceramic housing. During operation, electrical energy flowing through the resistance wire is converted into heat. The ceramic core efficiently transfers this heat while maintaining electrical insulation and mechanical stability.
Because the resistance wire provides highly stable electrical characteristics, wire wound resistors offer excellent load endurance, low resistance drift, and reliable performance during continuous operation. Their construction also enables higher power ratings than many conventional resistor technologies.
Why Ceramic Encased Construction Matters
The ceramic enclosure performs more than a protective function. It helps dissipate heat generated during operation while shielding the resistance element from moisture, vibration, dust, and mechanical stress.
For engineers designing industrial equipment, improved heat dissipation contributes to longer component life and more stable resistance values under varying operating conditions. Ceramic construction also enhances overload capability and supports reliable operation in harsh environments.

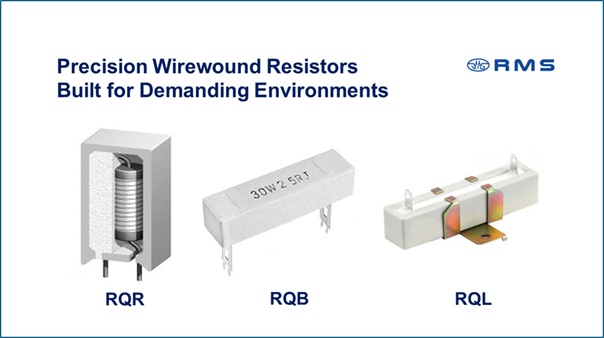

RQR Series Ceramic Encased Wire Wound Resistors
The RQR Series is designed for dependable power handling and stable electrical performance in low- to medium-power applications. Its ceramic-encased structure provides reliable protection while maintaining consistent resistance characteristics during continuous operation.
Key Specifications
- Product Group: Wire Wound Resistor
- Construction: Ceramic Encased
- Power Rating: 2W to 12W
- Resistance Range: 1Ω to 75kΩ
- Tolerance: ±5%, ±10%
- Maximum Working Voltage: 260V / 490V
- High thermal stability
- Reliable overload performance
- Durable ceramic housing
Typical applications include industrial control equipment, power supplies, automation systems, and general electronic circuits requiring dependable long-term operation.
RQB Series Ceramic Encased Wire Wound Resistors
The RQB Series Wire Wound Resistors are designed for higher power applications that require excellent reliability and efficient heat dissipation. The ceramic enclosure enhances durability while ensuring stable operation under varying electrical loads.
Key Specifications of RQB Series
- Product Group: Wire Wound Resistor
- Construction: Ceramic Encased
- Power Rating: 5W to 20W
- Resistance Range: 1Ω to 100kΩ
- Tolerance: ±5%, ±10%
- Maximum Working Voltage: 260V / 400V
- Excellent power handling capability
- Stable resistance characteristics
- Continuous-duty operation
The RQB Series is suitable for industrial power equipment, motor drives, braking circuits, and electronic systems operating under sustained electrical loads.
RQL Series Ceramic Encased Wire Wound Resistors
The RQL Series Wire Wound Resistors are developed for high-power applications requiring dependable thermal performance and mechanical durability. Their ceramic-encased design supports efficient operation while maintaining stable resistance under demanding conditions.
Key Specifications of RQL Series
- Product Group: Wire Wound Resistor
- Construction: Ceramic Encased
- Power Rating: 10W to 40W
- Resistance Range: 3Ω to 100kΩ
- Tolerance: ±5%, ±10%
- Maximum Working Voltage: 260V / 400V
- Designed for high-power applications
- Strong thermal endurance
- Long operational lifespan
The RQL Series is widely used in industrial power systems, motor control equipment, energy applications, and electronic circuits requiring robust resistor performance.
Why Wire Wound Technology Matters
Wire wound resistors are widely recognized for their excellent long-term electrical stability and high power handling capability. Compared with many other resistor technologies, the wire wound construction provides superior load endurance and maintains stable resistance values under continuous electrical stress.
Engineers commonly evaluate resistance tolerance, temperature coefficient of resistance (TCR), maximum working voltage, overload capability, and thermal characteristics together when selecting wire wound resistors. These parameters directly influence circuit accuracy, thermal performance, and long-term system reliability.
Because ceramic-encased wire wound resistors effectively manage heat while protecting the resistive element, they remain a preferred solution for industrial equipment, power electronics, and energy systems operating in demanding environments.
Selecting the Right Wire Wound Resistor
Choosing an appropriate wire wound resistor requires consideration of several design factors, including resistance value, power rating, tolerance, maximum working voltage, TCR, thermal conditions, and expected load profile.
Selecting the correct resistor helps reduce thermal stress, improve electrical stability, and extend component lifetime, ultimately contributing to more reliable system performance.
Why Choose RMS Wire Wound Resistors?
RMS combines proven wire wound resistor technology with carefully controlled manufacturing processes to deliver dependable resistor solutions for industrial applications.
Key Advantages
- Precision wire wound construction
- Stable resistance characteristics
- Excellent heat dissipation
- High load endurance
- Reliable overload capability
- Durable ceramic housing
- Long-term operational stability
- Suitable for industrial, energy, automation, and power electronics applications
If you are looking for wire wound resistor, you can find them at RMS.
